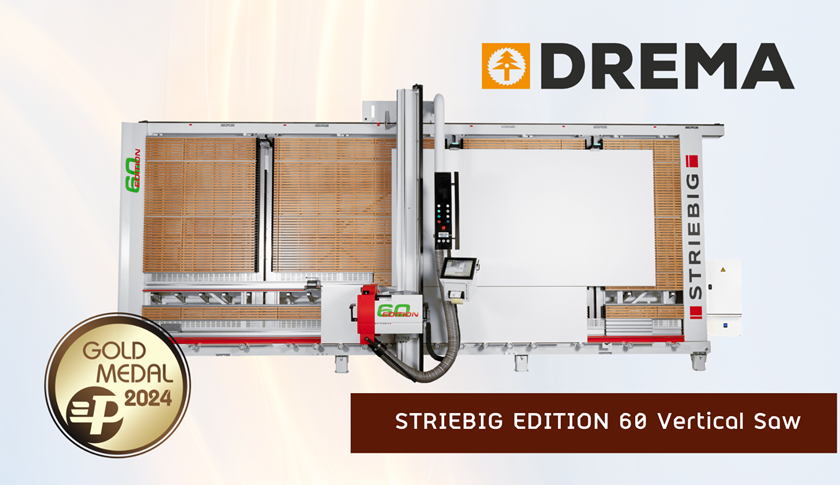

Meet Gold Medal Winner: STRIEBIG EDITION 60 Vertical Saw / Striebig AG, Otto Martin Polska Sp. z o.o.
To celebrate our 60th anniversary, we present EDITION 60, which will revolutionise the cutting process.
The integrated panel lowering device allows the ergonomic and smooth cutting of panels by one person only. The comprehensive standard equipment and the proverbial STRIEBIG accuracy guarantee short processing times and a safe, hand-guided workflow.
The plate grippers mean that we don't cut the strips from the top but from the bottom, which makes the process much faster and only one person is needed to operate it. After cutting the strip, the rest of the plate is held up so that the operator can freely cut the strip to length, which no longer requires any effort from the operator - this has a positive effect on work efficiency. The use of a cutting unit significantly improves the quality of cutting.
Highlights of the STRIEBIG EDITION 60
Function and technology optimally combined
1-person operation and smooth finished cut thanks to panel lowering device. There is no need to turn the panel and the cut strips can be directly divided vertically.
Strong and compact panel lowering device (PAV)
The integrated panel lowering device of the EDITION 60 comprises two panel lowering units. It can be used for panel materials up to 3000 × 2150 mm and up to 160 kg (80 kg/PA unit).
With an additional panel lowering unit (optional), panels up to 5000x2150mm and weight up to 240kg (80kg/PA unit) can be processed.
Extensive equipment package
The comprehensive equipment package of the EDITION 60 ensures efficient cutting.
- Wooden support wall TRK1 with integrated small parts support made of wood
- Panel lowering device (PAV) with two panel lowering units
- Pneumatic clamping of the motor carriage
- Pneumatically braked support rollers
- Digital measuring system DMS-Y, incl. fine adjustment
- Digital measuring system DMS-X, incl. fine adjustment
- Laser-supported display of the horizontal cut
Clear push-button control for easy operation
The EDITION 60 is operated by means of a clear push-button control. The panel lowering device can be moved quickly and precisely by means of 2-hand control.
The LED lights on the panel lowering units guide the operator safely through the sawing proces.
